Horsepower Estimator

Estimate horsepower three ways: from your quarter-mile trap speed, from your quarter-mile elapsed time, or from torque and RPM. Add your vehicle's race weight and drivetrain type to see estimated wheel and crank horsepower.

Three ways to estimate horsepower

Without a dynamometer you cannot measure horsepower directly, but you can estimate it from how quickly a car accelerates. Drag-strip timeslips give two useful numbers: elapsed time (ET) over the quarter mile and trap speed at the finish. Both depend on the power-to-weight ratio, so with an accurate race weight you can work backwards to power. The third method converts a known torque figure at a given engine speed into horsepower, which is exact rather than estimated.

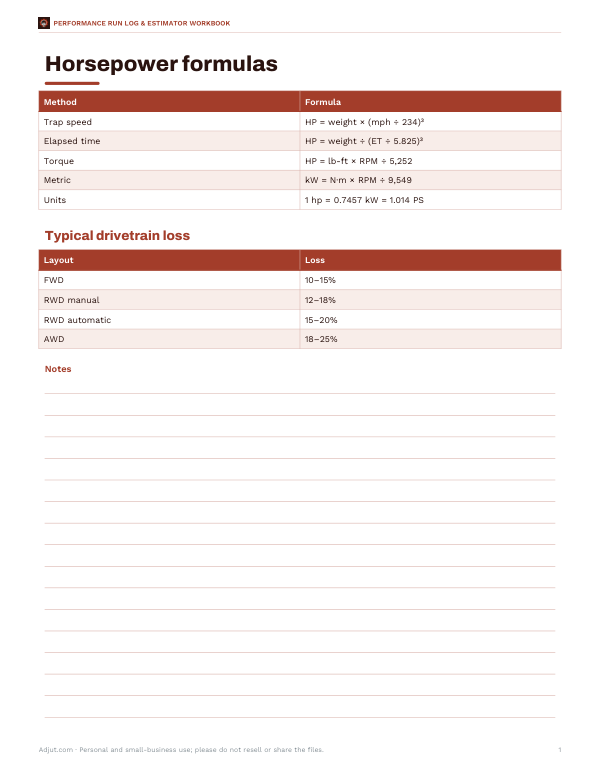

The formulas

1. Trap speed method (after Roger Hale): horsepower = weight × (trap speed ÷ 234)³.
2. Elapsed time method: horsepower = weight ÷ (ET ÷ 5.825)³.
3. Torque method: horsepower = torque (lb-ft) × RPM ÷ 5,252.
4. Wheel horsepower ≈ flywheel horsepower × (1 − drivetrain loss).

Weight is in pounds and includes the driver and fuel as run. The constants 234 and 5.825 come from fitting the formulas to real drag-racing results; they give flywheel (crank) horsepower estimates for typical street cars.

Why trap speed is the better indicator

Elapsed time includes the launch — reaction to traction, clutch or torque-converter technique, tire grip and the first 60 feet — which can vary by several tenths of a second between runs with the same engine. Trap speed is measured at the end of the run when the car is pulling hard in the upper gears, so it reflects sustained power much more consistently. If the two methods disagree strongly, the trap-speed estimate is usually closer; a much slower ET than trap speed suggests traction or launch problems rather than a lack of power.

Worked example

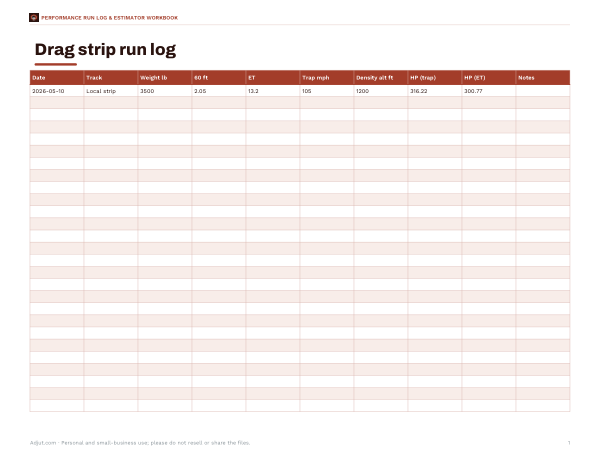

A car weighing 3,500 lb with the driver runs 13.2 seconds at 105 mph. Trap speed gives 3,500 × (105 ÷ 234)³ = 3,500 × 0.0903 ≈ 316 hp at the flywheel. Elapsed time gives 3,500 ÷ (13.2 ÷ 5.825)³ = 3,500 ÷ 11.64 ≈ 301 hp. With a manual rear-wheel-drive drivetrain losing about 15%, the car would put roughly 269 horsepower to the wheels on a chassis dyno.

Drivetrain loss: wheel versus crank horsepower

Manufacturers quote horsepower at the crankshaft, while chassis dynamometers measure it at the wheels. The difference is lost in the transmission, differential, driveshafts and tires. Loss is often quoted as a percentage, although part of it is closer to a fixed amount; typical rough figures are:

Different dyno types — inertia, eddy-current or hub dynos — also read differently, so compare numbers from the same dyno.

Torque, horsepower and 5,252

Torque is the twisting force an engine produces; horsepower is the rate at which it does work. One horsepower is 33,000 foot-pounds per minute, and converting rotational speed into that unit gives the constant 5,252. Because of this, a dyno chart plotted in horsepower and lb-ft always shows the two curves crossing at 5,252 RPM. In metric units, power in kilowatts equals torque in N·m × RPM ÷ 9,549.

Estimating the effect of modifications

Because the trap-speed formula ties power to the cube of speed, small gains in trap speed represent meaningful power: going from 105 to 108 mph at the same weight implies about 9% more horsepower. That makes the estimator useful for before-and-after comparisons of intake, exhaust or tuning changes, as long as you test at the same track, in similar weather, with the same weight. Take several passes on each setup and compare averages, because a single run can be affected by wind, track preparation and heat soak. Weight reduction shows up differently: the car accelerates harder, but the estimated horsepower should stay about the same if the formula is working correctly.

Getting good inputs

• Weigh the car on a certified scale with the driver and a typical fuel load; weight errors carry straight into the estimate.
• Use your best representative run, not an outlier with a tailwind.
• Correct for altitude and weather: thin, hot or humid air reduces power; drag strips often publish a density altitude or correction factor.
• Remember aerodynamics: very high-speed or boxy vehicles lose more to drag, and the formulas can underestimate their power.

Power-to-weight in everyday terms

Power-to-weight explains why a light car with modest power can feel quicker than a heavy car with more. Pounds per horsepower is a handy single number: a typical family sedan might sit around 15–20 lb per hp, a sporty hatchback around 10–13, and many modern performance cars below 8. Removing 100 lb from a 3,500 lb car has roughly the same effect on acceleration as adding about 3% more power. The estimator shows both figures so you can compare modifications in the same units.
